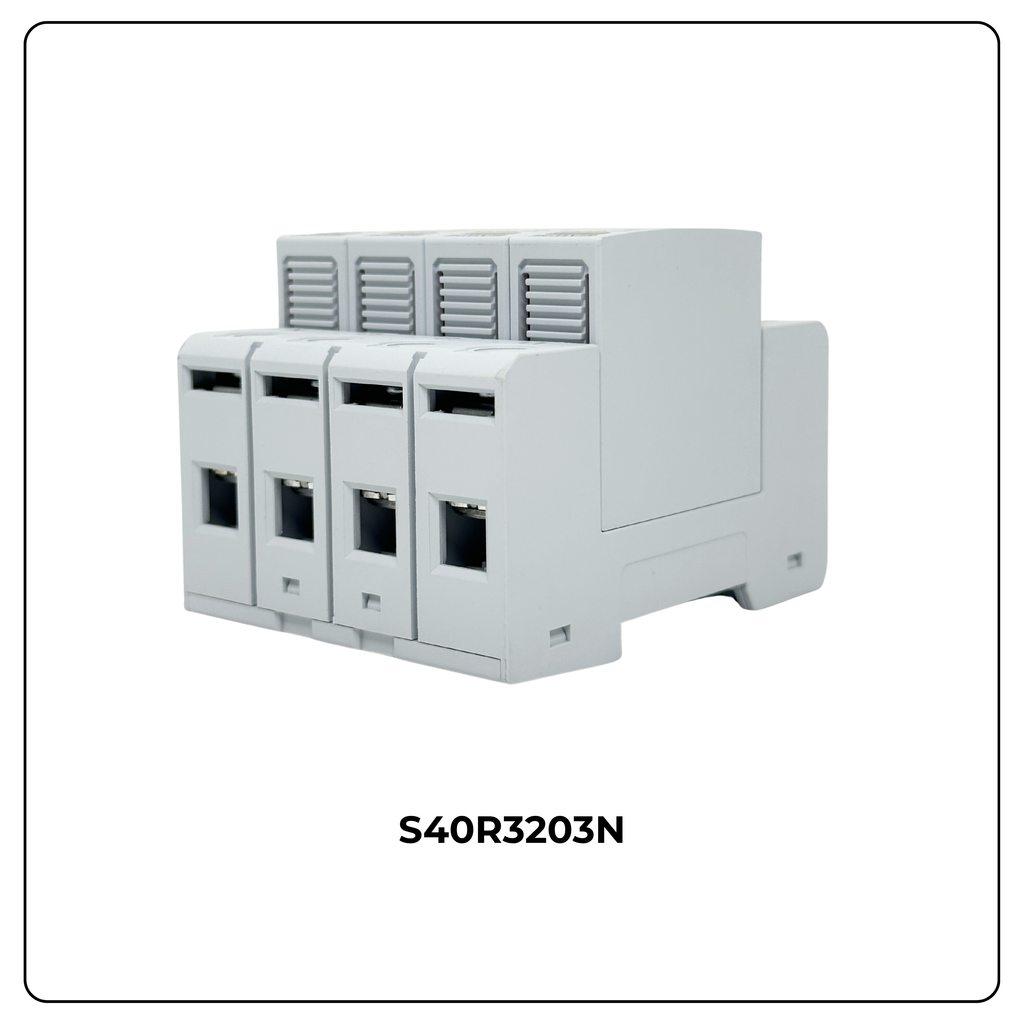

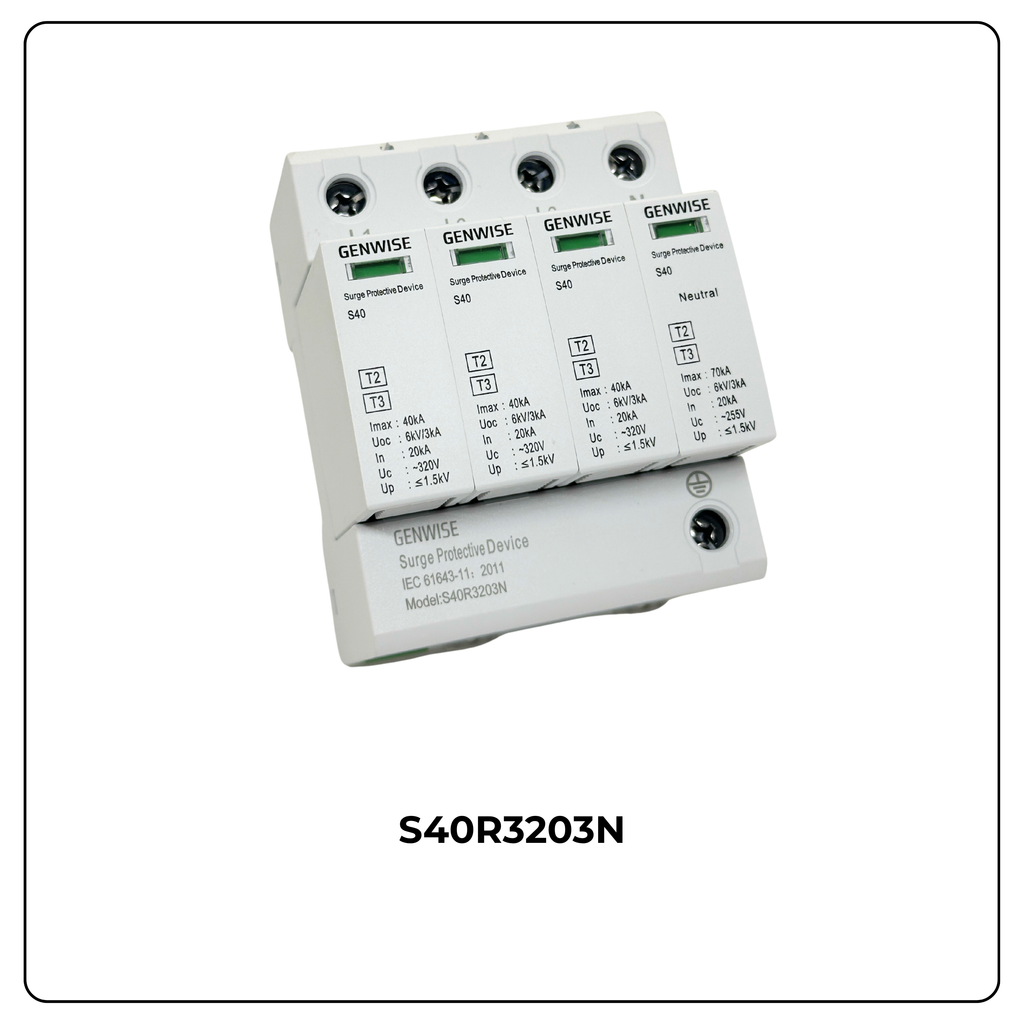

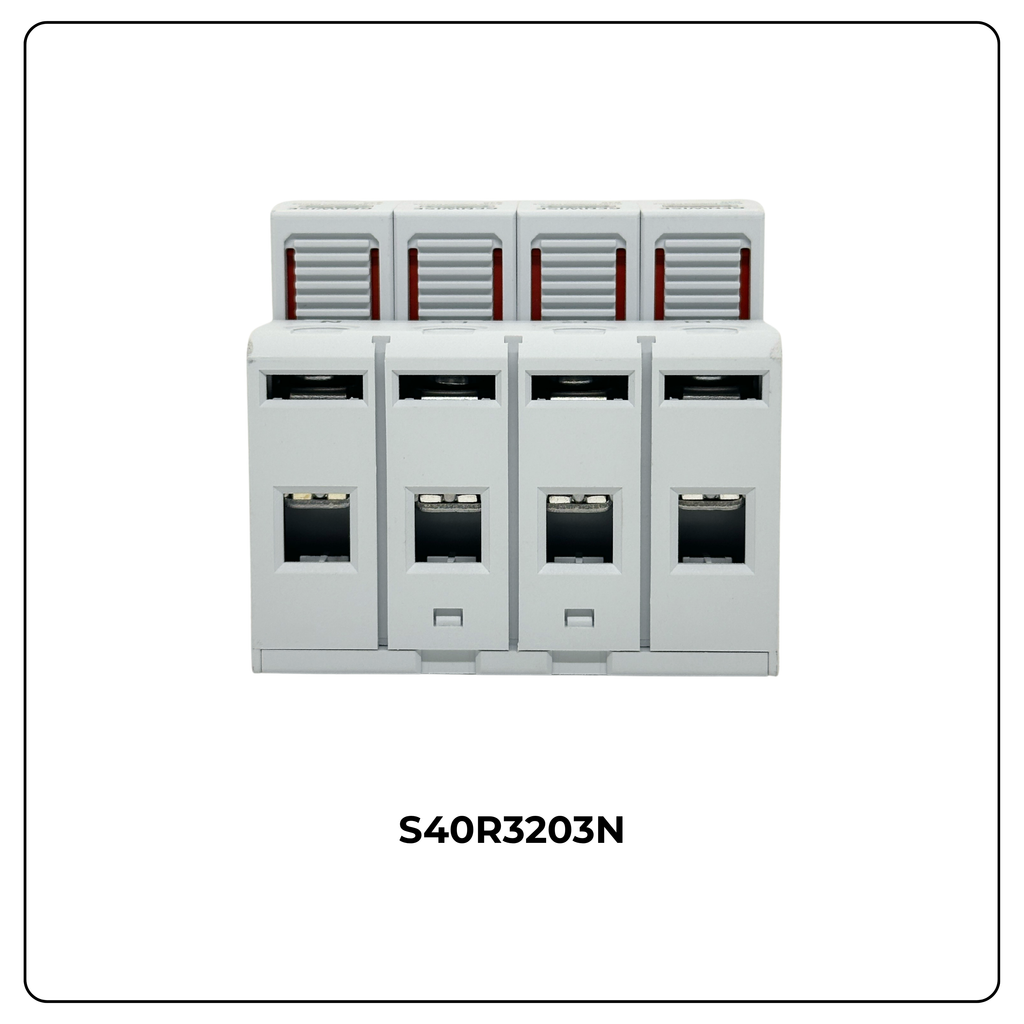

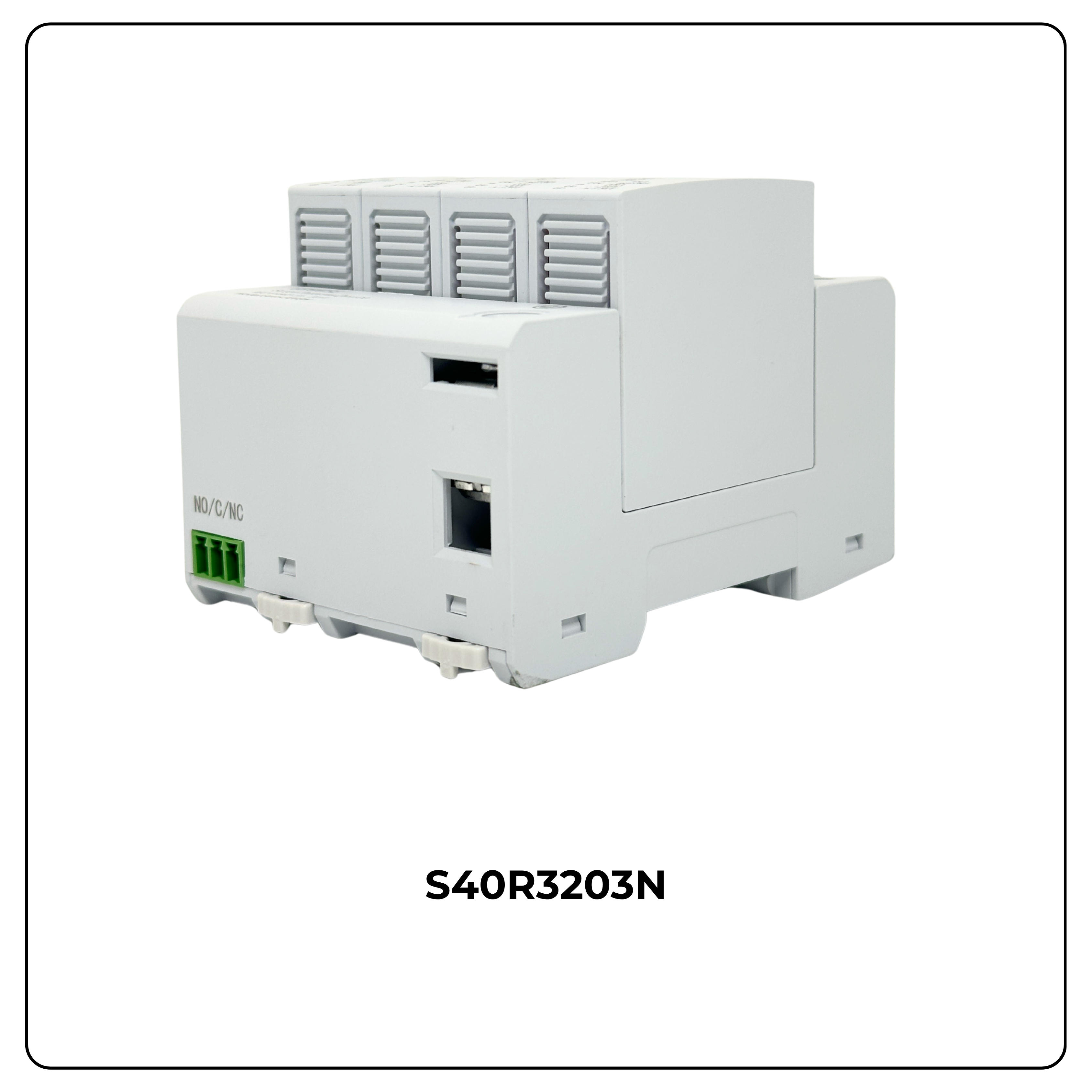

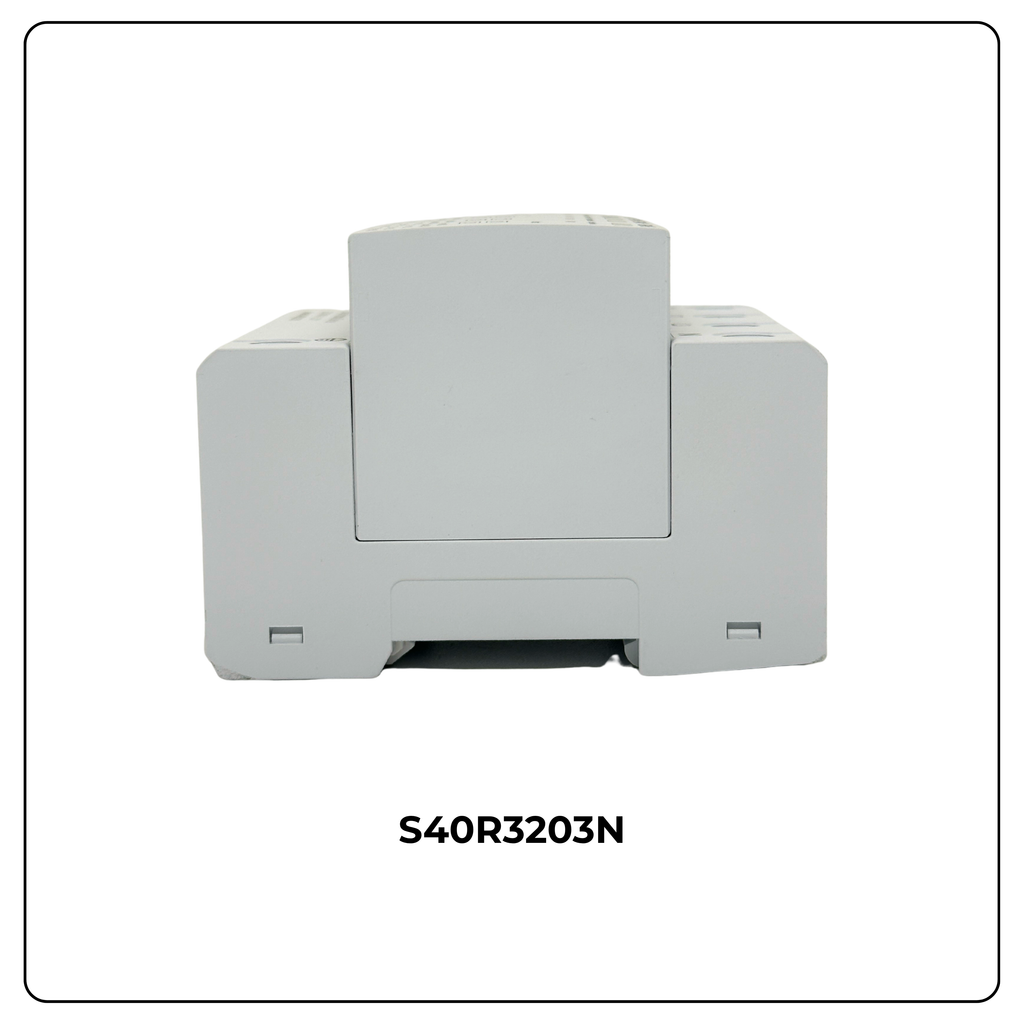

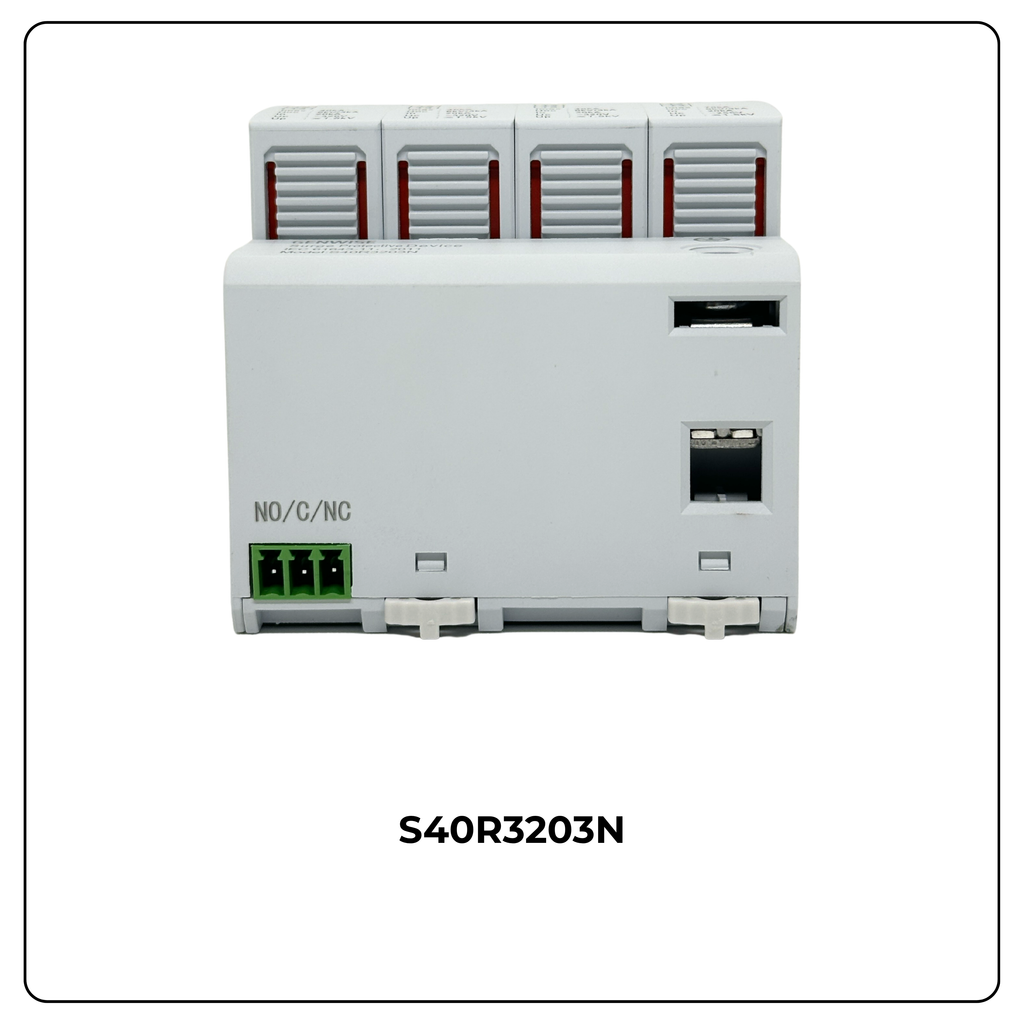

S40R3203N
RM210.00 MYR
Skip to product information
S40R3203N
RM210.00 MYR
Surge Protective Device T2 + T3 / Class II+III
Applications in:
- Main Switchboard
- Sub Switchboard
| Product | Surge Protective Device |
| Brand | GENWISE |
| Manufacturer, Owner, Designer | GENWISE Aitech Sdn Bhd |
| Standard Compliance | IEC 61643-11 |
| Type Classification | Type 1 / Type2 / Type 3 |
| Tested Waveforms | 10/350us / 8/20us / 6kV & 3kA |
| Test Report & Approval | Internationl Test Report |
| Max. Discharge : | L-N @ 40kA. |
| Current (IMAX) | N-PE @ 70kA |
| Open Circuit : | 6kV / 3kA Voltage (Uoc) |
| Nominal Discharge : | L-N @ 20kA. |
| Current (In) | N-PE @ 20kA |
| Max. Continuous : | L-N @ 275V. |
| Operating Voltage (Uc) | N-PE @255V |
| Voltage Protection : | L-N @ <1.3kV (T2) |
| Level (Up) | N-PE @<1.3kV(T2) |
| L-N @ <1.0kV (T3) | |
| N-PE @<1.3kV(T3) |
