S12.5R2753N
RM720.00 MYR
Skip to product information
S12.5R2753N
RM720.00 MYR

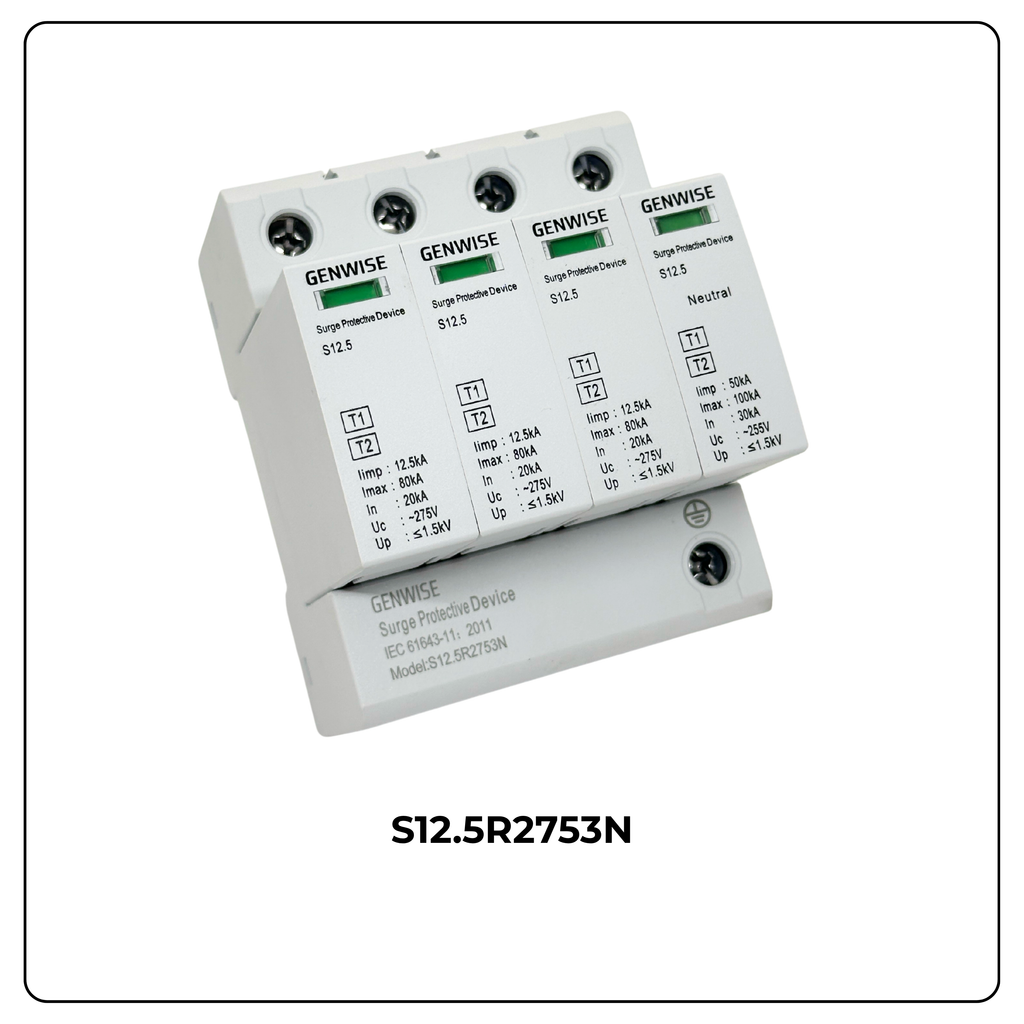

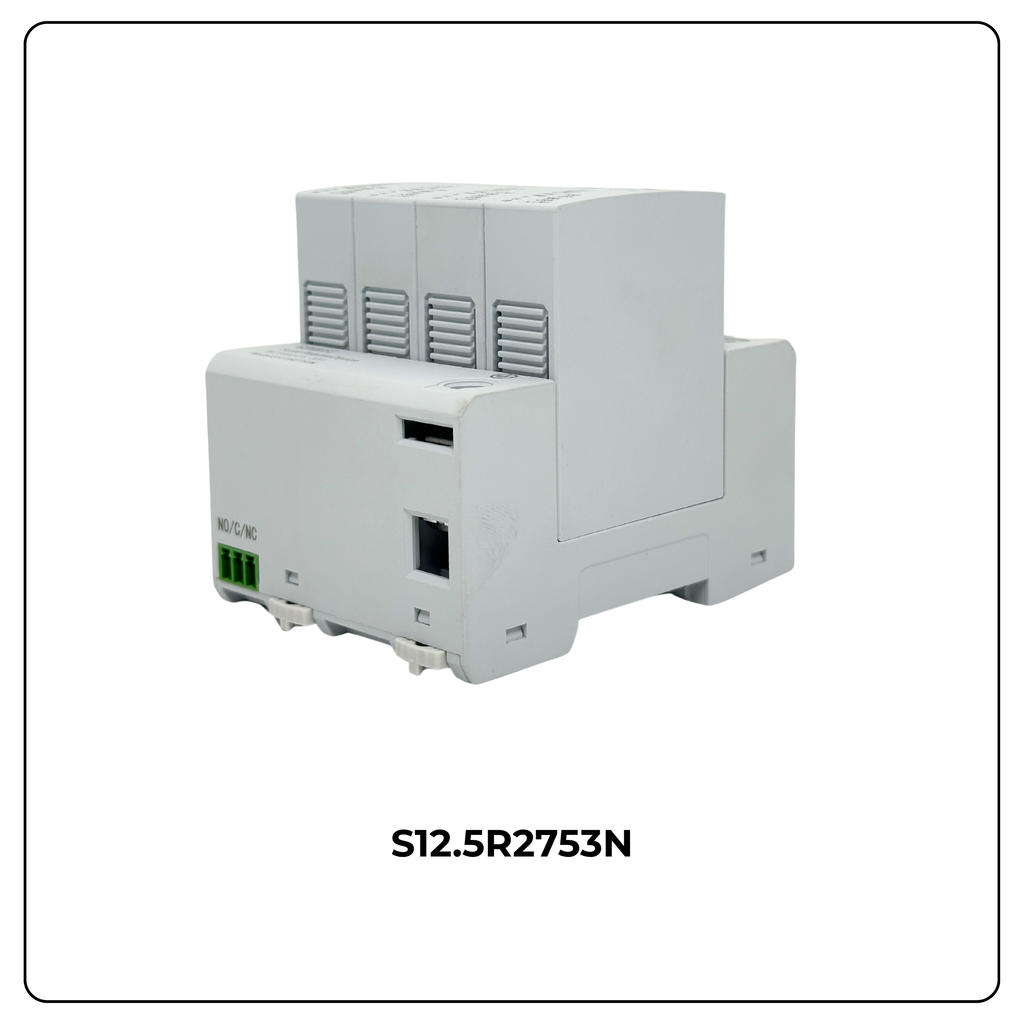

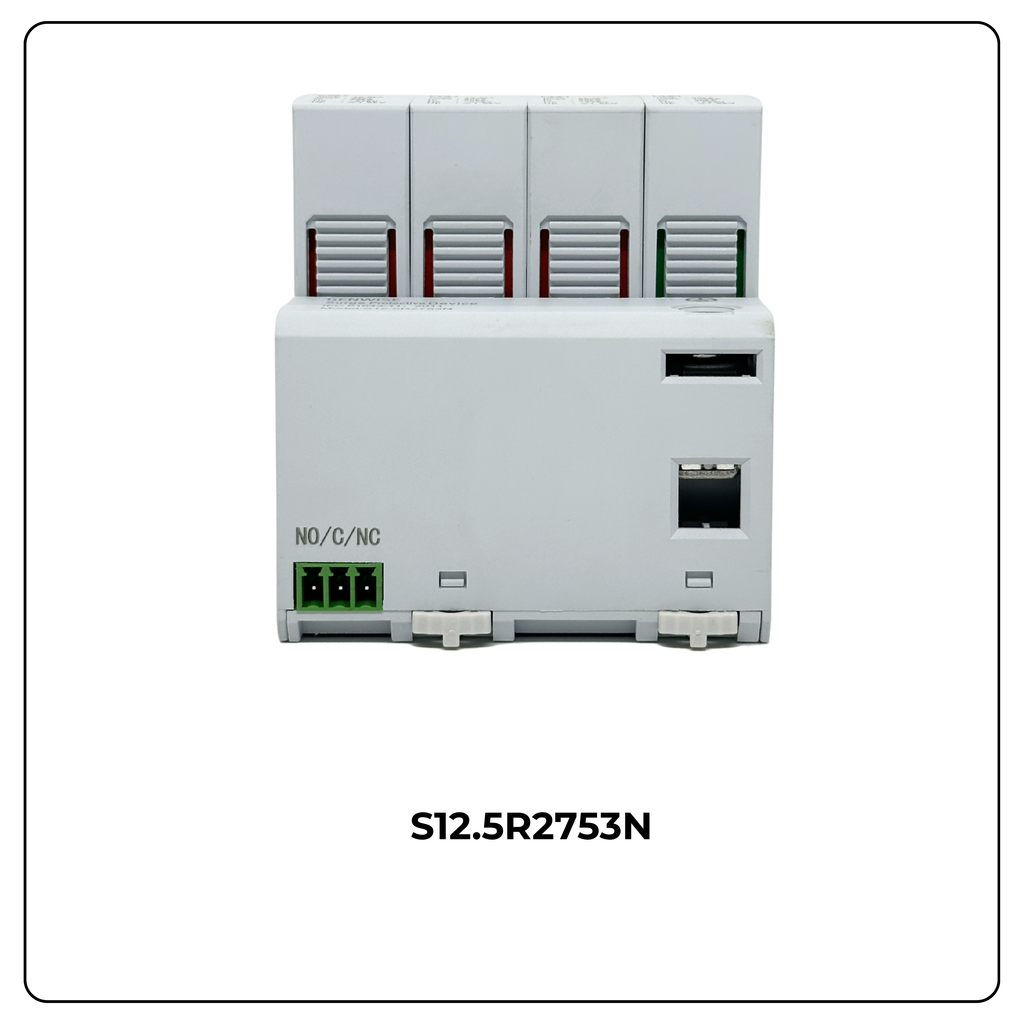

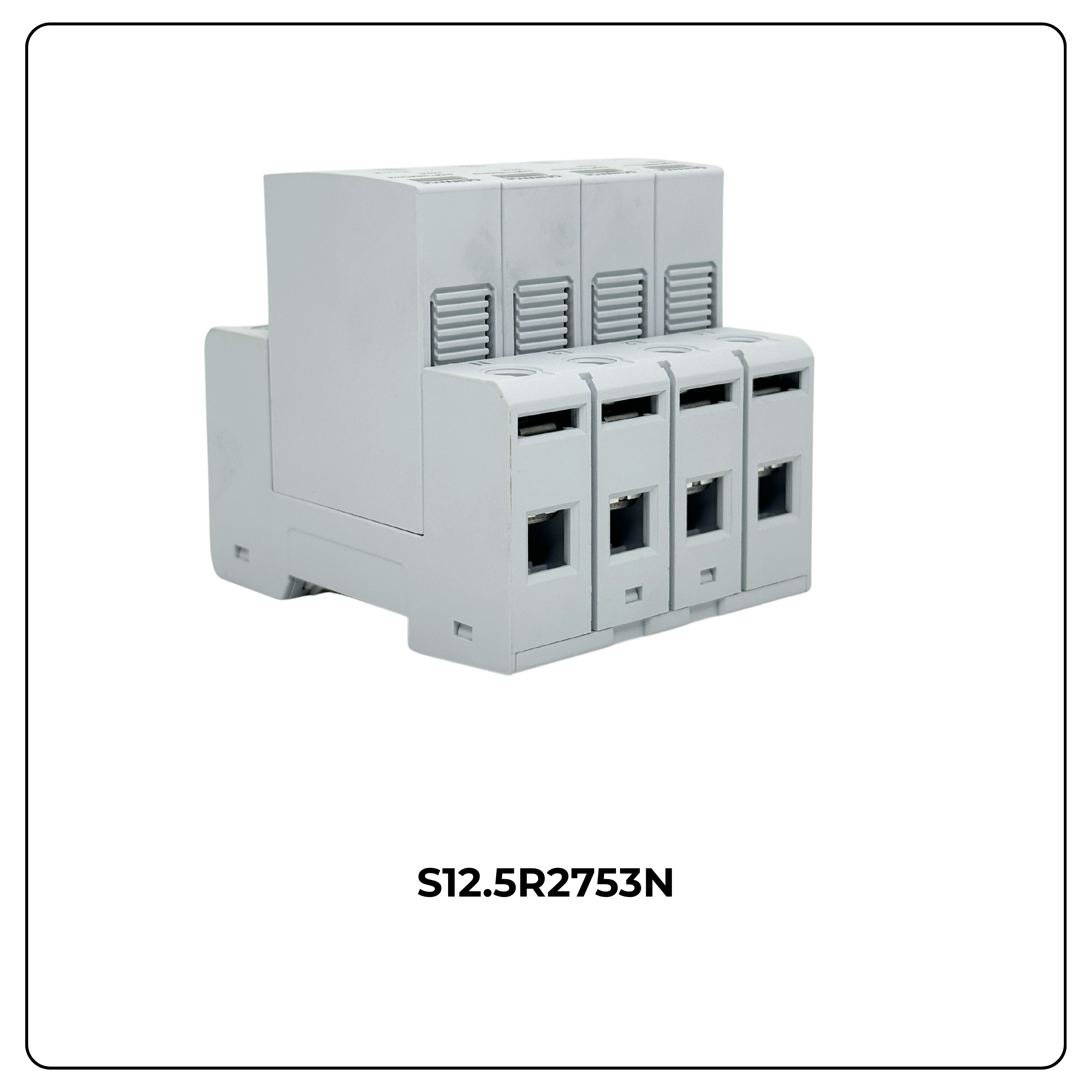

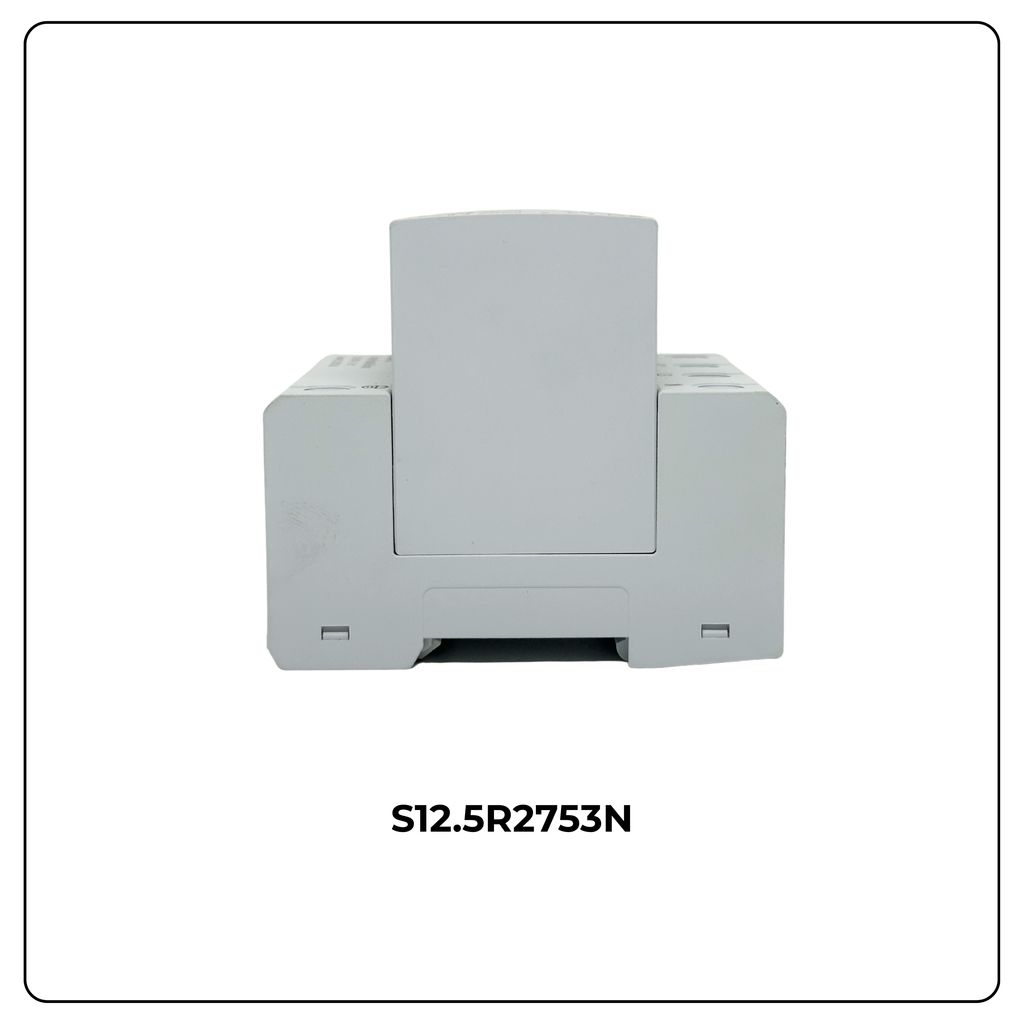

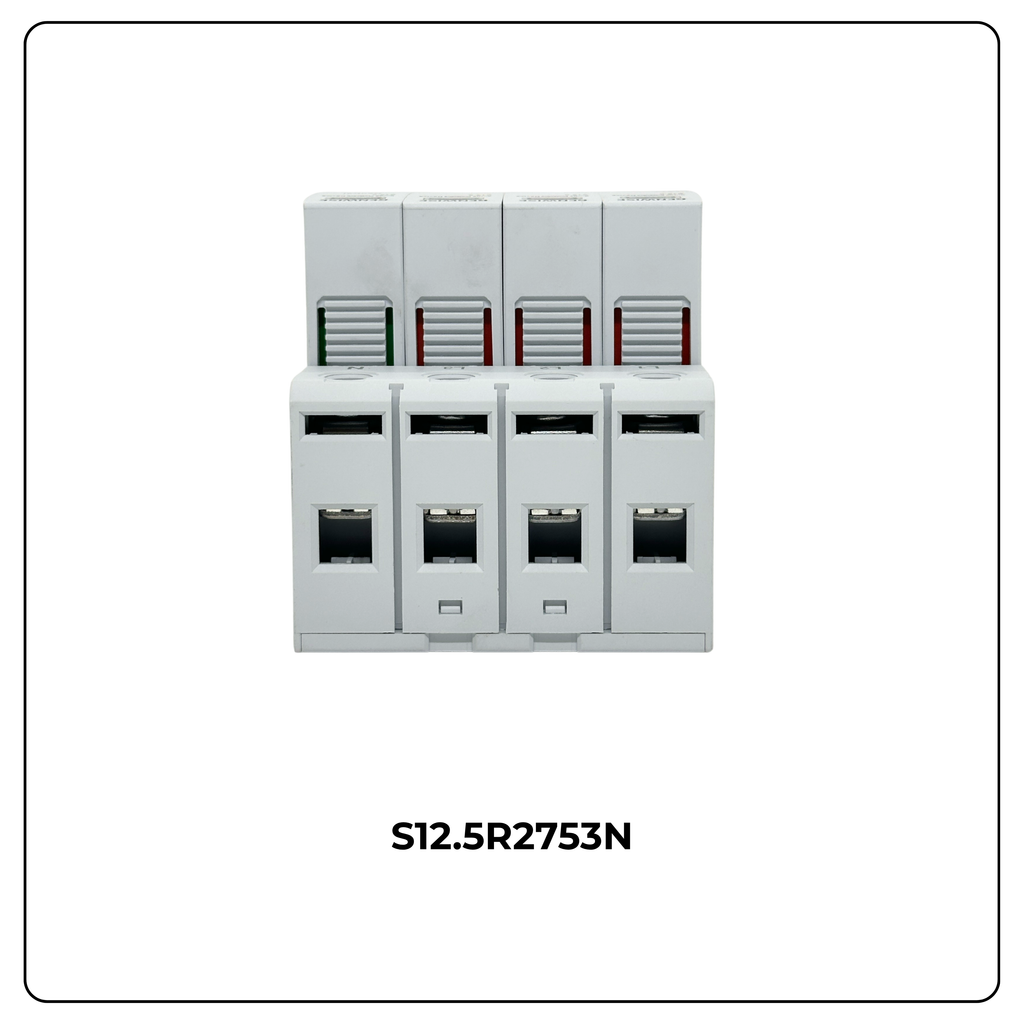

Surge Protective Device T1+T2 / Class I+II
Applications in:
- Main Switchboard
- Sub Switchboard
| Product | Surge Protective Device |
| Brand | GENWISE |
| Manufacturer, Owner, Designer | GENWISE Aitech Sdn Bhd |
| Standard Compliance | IEC 61643-11 |
| Type Classification | Type 1 / Type2 / Type 3 |
| Tested Waveforms | 10/350us / 8/20us / 6kV & 3kA |
| Test Report & Approval | Internationl Test Report |
| Impulse Current : | L-N @ 12.5kA. |
| (limp) | N-PE @ 50kA |
| Max. Discharge : | L-N @ 80kA. |
| Current (IMAX) | N-PE @ 100kA |
| Nominal Discharge : | L-N @ 20kA. |
| Current (In) | N-PE @ 30kA |
| Max. Continuous : | L-N @ 275V. |
| Operating Voltage (Uc) | N-PE @255V |
| Voltage Protection : | L-N @ <1.5kV |
| Level (Up) | N-PE @<1.5kV |
